Home Elevator Space Planning is one of the most critical steps when considering adding a lift to your property. It’s not just about picking a style; it’s about seamlessly integrating a functional piece of machinery into your existing or planned structure. Getting the layout right ensures accessibility, safety, and a smooth installation process.

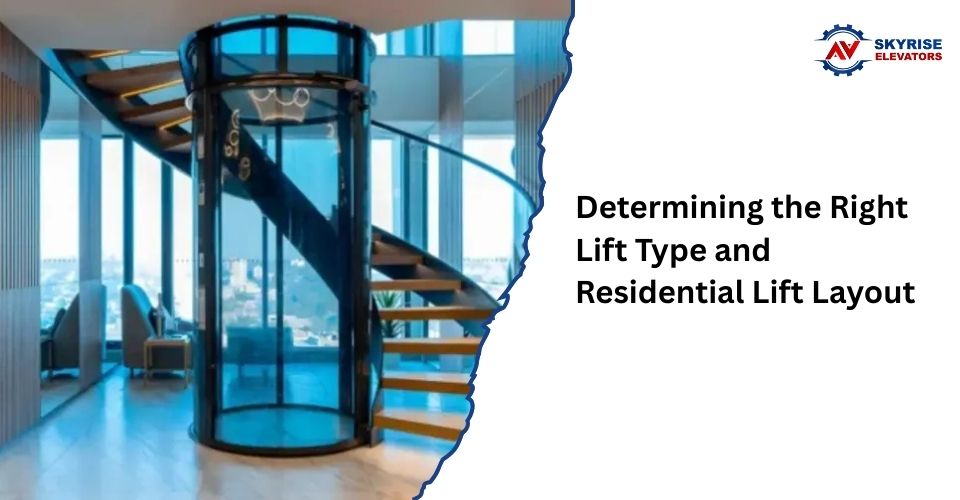

Determining the Right Lift Type and Residential Lift Layout

The first and most important factor in your space planning is selecting the type of home lift, as this dictates the dimensions you’ll need to allocate.

• Traditional Elevators (Hydraulic or Traction):

These often require the most space. They necessitate a dedicated vertical shaft called a hoistway, a shallow pit below the lowest floor, and sometimes a separate machine room for the operating equipment.

• Pneumatic Vacuum Elevators (PVE):

These are sometimes referred to as ‘shaftless’ lifts. They operate using air pressure and are a fantastic choice for retrofitting into existing homes with tight spaces. They do not require a pit or a machine room, significantly simplifying the Residential Lift Layout.

• Through-Floor Lifts:

These compact systems travel on rails through an opening cut into the floor, perfect for limited space, as they only occupy the floor they are on.

Understanding the requirements for each type is crucial to defining your Home Elevator Space Planning strategy.

Key Space Planning Factors for Your Lift

Regardless of the model, every residential lift requires specific dimensions to operate safely and legally. Here are the core components you must factor into your design:

1. The Hoistway and Overall Footprint

The hoistway is the vertical shaft that the lift car travels within.

• Minimum Floor Space:

A good starting point for a standard, non-wheelchair-accessible two-person lift is a minimum of 20–25 square feet of floor space.

• Standard Hoistway Size:

A typical shaft might measure around 4 feet by 5 feet, but this varies significantly. For a Residential Lift Layout that needs to accommodate a wheelchair, you will need a larger cabin (e.g., about 40 inches by 54 inches), which translates to an even wider hoistway.

2. Pit Depth

This is a shallow area required beneath the lowest floor landing.

• Traditional Lifts:

These typically require a pit of around 6 to 12 inches deep to house buffers and other safety equipment.

• Shaftless Lifts:

Many modern shaftless models eliminate the need for a pit entirely, simplifying the construction and making them ideal for existing slabs or upper floors.

3. Overhead Clearance (Headroom)

This is the vertical space needed above the ceiling of the top floor landing.

• Most home lift systems require a minimum of 8 feet (2400 mm) of clearance above the top floor. Some models may need a little more, while others are designed to be more compact. It’s essential to confirm this measurement with your chosen supplier to avoid structural issues.

4. Landing and Door Clearances

A vital aspect of successful Residential Lift Layout is ensuring safe and accessible entry and exit points.

• Door Width:

For true accessibility, the door should be at least 36 inches wide to easily accommodate wheelchairs or walkers.

• Landing Area:

You must plan for enough open space on the floor at each landing so the doors can open smoothly and a person can safely maneuver around the lift without obstruction.

5. Planning for Mechanical Components

Many modern lifts use Machine Room-Less (MRL) technology, integrating the drive and control systems into the hoistway itself. However, you still need to account for a small control panel and external electrical system, which are often placed discreetly near the shaft.

Strategic Placement: Where to Put Your Home Lift

Effective home elevator space planning involves choosing a location that minimizes intrusion while maximizing convenience.

• Adjacent to the Staircase:

This is a popular option, as the lift core can be integrated alongside the existing vertical pathway. This is efficient for construction and often feels most natural.

• Utilizing Stacked Closets:

If you are retrofitting, converting existing closets on each floor into a lift shaft is a great way to save space and minimize major structural work.

• In an Existing Garage:

Placing the lift in the garage can be convenient, but ensure you have the necessary overhead clearance, especially if you have a low ceiling.

• Tucked in a Corner or Utility Area:

Placing the lift in a less-used corner can preserve the aesthetics and functionality of your main living areas.

Consulting an Expert for Your Home Elevator Space Planning

The complexity of fitting a machine into a residential structure means that an early consultation with an elevator professional is non-negotiable. They can:

1. Assess Your Structure:

Determine what load-bearing walls are involved and identify the optimal location based on structural integrity.

2. Ensure Code Compliance:

They will navigate local building codes, regulations, and permitting requirements, ensuring your installation is safe and legal.

3. Finalize the Residential Lift Layout:

An expert can provide CAD drawings and detailed dimensions tailored to the exact model you choose, giving you precise measurements for your builder.

Why Choose Skyrise Elevators?

An innovative lift organization, Skyrise Elevator conveys expert and solid help through a group of specialized staff. Skyrise has some expertise in bespoke lift establishments, modernisation and support for low to tall structure private, business, mechanical, retail, schooling, wellbeing and matured consideration structures all through the Australia area. At Skyrise Elevators, we highly esteem our extensive rundown of administrations, conveying protected, reasonable and viable answers for our customers.

It is our complete obligation to endeavor to give the best continuous support and administration for our establishments, empowering our many customers to procure the best effectiveness in vertical and level transportation needs within their structures.

Frequently Asked Questions (FAQs)

Q1: What is the minimum required floor space for a home lift?

A: A typical residential lift requires a minimum of 20 to 25 square feet of floor space, though shaftless models may require less.

Q2: Do I always need a pit for my home elevator?

A: No, many modern “shaftless” or through-floor lift models are designed to be pit-less, simplifying installation, especially in existing homes.

Q3: How much overhead clearance (headroom) is needed at the top floor?

A: Generally, a minimum of 8 feet (2400 mm) of overhead clearance is required above the top floor landing for safe operation.

Q4: What is the most space-efficient location for a residential lift?

A: Integrating the lift with existing vertical spaces, such as adjacent to a staircase or within a stack of closets, is typically the most space-efficient solution.

Conclusion:

Successfully executing your home elevator space planning is the foundation of a worthwhile investment. By carefully considering the lift type, measuring the necessary dimensions, and planning the Residential Lift Layout strategically, you can ensure a seamless integration that enhances your home’s value and accessibility. Skyrise Elevators, with their specialization in bespoke installations and comprehensive list of services, provides safe, affordable, and effective vertical transportation solutions.
